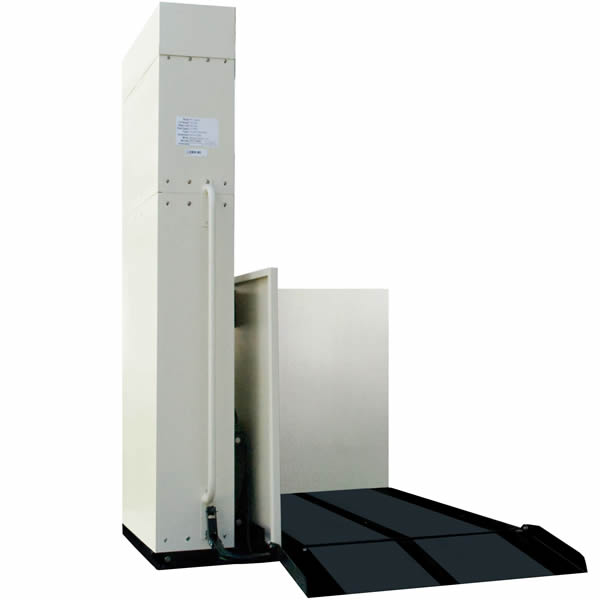

Hercules II 600 Residential Vertical Lift

spacer


$3,695.00
Plus Shipping
No Sales Tax

AmeriGlide’s Hercules II 600 Residential Vertical Lift will allow you to enjoy full access to all levels of your home.  This powerful and versatile lift comes standard with a 600 pound weight capacity that can easily transport both you and your mobility scooter or power wheelchair.

The sturdy platform provides an automatic folding ramp, making it easy to enter and exit your vertical lift.  Once the lift is in motion, the raised ramp will add extra stability and ensure that you are securely in place.  An easily accessible constant pressure rocker switch makes operating your lift both simple and safe.  Additional safety features include an emergency stop button, safety sensors that can detect obstacles, and a key lock for the controls.

In addition, this residential lift is durable enough for outdoor installation.  Weather resistant controls and sturdy construction mean that it can withstand even the harshest conditions and years of repetitive daily use. Contact one of our residential lift representatives to learn more about the Hercules II 600 Residential vertical platform lift and how it can transform your life.



The Hercules II 600 Residential Vertical Lift at a Glance:

  • 600 lb. weight capacity
  • Solid platform
  • Safety pan
  • Some assembly required
  • Can be further disassembled for inside installations
  • AC motor with Acme screw drive
  • Paddle platform controls
  • Switches and controls are weather resistant
  • Top limit switch allows you to set the stop of the lift at any height (up to the maximum lift height)
  • Bottom limit also included
  • ASME A18.1, Section 5 - "Private Residence Vertical Platform Lifts" compliant when properly configured
  • CSA B44.1 / ASME 17.5 - "Elevator and Escalator Electrical Equipment" compliant when properly configured
ETL Listed
spacer

Options Available for the Hercules II 600 Residential Vertical Lift

  • Lifting Height
    • 53" Max Lift Height  $0.00
    • 77" Max Lift Height  $710.00
    • 101" Max Lift Height  $1,925.00
    • 125" Max Lift Height  $3,355.00
  • Crating & Assembly
    • No Crating - Some assembly is required.  $0.00
    • 36" x 48" or 36" x 54" Platform  $0.00
    • 53" Unit Shipped Crated & Fully Assembled  $460.99
  • Tower Orientation
    • Tower On The Left  $0.00
    • Tower On The Right  $0.00
  • Power Source
    • AC Powered  $0.00
    • DC Battery Powered - Battery provides 15-20 cycles during power outage. Batteries included.  $1,020.99
  • Power Supply
    • 115v (60 hz)  $0.00
    • 220v (60 hz)  $230.99
  • Electronics
    • Standard Electronics Control Board  $0.00
  • Platform Type
    • 36" x 48" Straight Thru (34" Usable Width)  $0.00
    • 36" x 54" Straight Thru (34" Usable Width)  $134.99
    • 36" x 54" 90° Platform  $355.99
    • 36" Clear x 54" Platform Upgrade  $152.98
  • Platform Access
    • Straight Thru  $0.00
  • Platform Controls
    • Paddle Controls with Emergency Stop Button  $0.00
  • Platform Options
    • Solid Platform with Safety Pan  $0.00
    • 36" High Side Walls  $0.00
  • Ramp Type
    • Automatic Ramp  $0.00
  • Landing Controls
    • Call/Send Control Station (each)  $129.00
    • Wireless Call/Send Control Stations (pair)  $454.99
    • Keylocks for Controls (each)  $39.00
  • Landing Gate
    • Landing gates below include an interlock and a call/send control built into the gate.  $0.00
    • Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)  $811.99
    • Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)  $811.99
    • Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)  $983.99
    • Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)  $983.99
    • Landing gates below include an interlock only.  $0.00
    • Left Swing 36" Wide Landing Gate with Interlock Only (each)  $737.99
    • Right Swing 36" Wide Landing Gate with Interlock Only (each)  $737.99
    • Left Swing 42" Wide Landing Gate with Interlock Only (each)  $909.99
    • Right Swing 42" Wide Landing Gate with Interlock Only (each)  $909.99
  • Interlocks
    • Surface mount EMI interlocks below are for a customer provided door or gate.  $0.00
    • Left Swing Top Landing Door/Gate EMI Interlock (each)  $376.59
    • Right Swing Top Landing Door/Gate EMI Interlock (each)  $376.59
    • Flush mount electric strike interlocks below are for a customer provided door or gate.  $0.00
    • Top Landing Electric Strike Interlock - Metal Frame (each)  $639.00
    • Bottom Landing Electric Strike Interlock - Metal Frame (each)  $639.00
    • Top Landing Electric Strike Interlock - Wood Frame (each)  $639.00
    • Bottom Landing Electric Strike Interlock - Wood Frame (each)  $639.00
    • Other Interlock Options  $0.00
    • Wiring For Interlock (per landing)  $159.00
    • Keyed Dead Latch for Flush Mount Electric Strike Interlock (each)  $129.00
  • Optional Equipment
    • Anchor Bolt Kit  $0.00
    • Fascia Panel (per foot)  $65.00
    • Tower Braces  $153.99
    • Phone Jack  $121.99
    • Emergency Light  $134.99
    • Express Deck  $1,427.15
    • Note: Residential applications only. 48" max height. Includes 5'x5' platform, stairs and one set of hand rails.  $0.00
    • Outdoor Package (Price is per foot)  $285.72
    • Custom Color (8-10 Week Lead Time)  $1,229.54
    • Extra Keys  $3.00
  • Additional Delivery Services
    • Free Liftgate Service only on 53" Units As Requested  $0.00
Customer Reviews
19 reviews

10

9

0

0

0
Certified Customer
Hercules 600 residential vertical lift
Jul 1, 2013 3:31 PM
A Little About Myself
Pros
Easy to install, works great. Simple machine and easy to troubleshoot.
Cons
Shipping banding was too tight and dented a side panel but we fixed it. Wire came loose during shipment. We tracked down the problem and fixed it.
Service & Delivery
The delivery and the person who delivered it was fantastic.
The side panels could be a little stiffer
9 of 9 people found this review helpful
Did you find this review helpful? Yes / No

Certified Customer
Good design, sturdy construction, works well, but the delivery and assembly needs work
Oct 1, 2012 10:42 PM
A Little About Myself
Retired guy
Pros
Sturdy, reliable, simple design, few bells and whistles to break and malfunction. Relative easy to assemble without instructions. Excellent value.
Cons
Delivery to a residence was problematical. Instructions were written for those already familiar with the assembly process. Preset limit switch posistions and configurations were confusing. No return policy.
Service & Delivery
See comments above
The good: Dealing with Ameri-glide to pick out and configure what I wanted was efficient and easy. The salesman was very helpful. The product was delivered on time. The assembly was generally obvious with a little trial and error. In a day, it was working as advertised. the unit (roughly a 3' by 4' platform with max heigth of 7' and two call stations) is sturdy, simple, of reliable low tech basic construction, well made, and completely adequate to the task it was designed for. It was installed the next day after delivery and has been performing as expected since then (about 2 weeks). From seeing how it is built and understanding how it works, I expect a long service life with little trouble or maintenance required, (It is installed in my garage, thus protected from the weather.) The bad: It came with several parts bent and dented. Fortunately the metal bends easily and it was not hard to re-bend into the proper shape with a hammer and some blocks of wood such that the damage is entirely fixed to the condition of ?like new?. The instructions are obviously written for the staff at Ameri-glide who do the pre-shipping assembly, or for those already familiar with the part names, locations, and assembly process. However, it wasn't that hard to figure it out and a few of the pictures were useful. The assembly, anchoring and configuring the limit switches process took two of us the best part of a day. The thing arrived on a pallet and had a shipping weight of almost 922 pounds. It had been inserted into the truck (18 wheeler with lift-gate) by a fork lift working from a loading dock (lifting the pallet by the heavy end as was required) . The truck stops in the street (curbside delivery) at my home where of course there is no loading dock. The pallet could only safely be lifted by the end at the tailgate and the driver could only use his pallet jack at the end that was not supposed to be lifted. However, that was moot since the pallet was much longer than either the width or depth of the lift-gate and since the pallet was too long to turn around in the truck, the lift gate could not be used. The only way the 922 lb pallet could come off the truck in one piece was if the truck backed up to a loading doc. Thus, having this delivered to your residence (unless you live in a warehouse) is problematic. Fortunately, knowing how much this product weighed, I had 3 guys there to help, otherwise the driver could not have delivered the lift to my residence -- period. We took the pallet apart and lifted the individual parts out of the truck. The heaviest part weighs about 500 pounds and is manageable with 4 men. After the unit was assembled and anchored, the lift would only go in one direction (up) to about 4 feet high and then stop -- this was about 2 inches higher than the stairs landing. Quite by accident I realized that if the lift was taken above the stairs landing it would go down afterwards but only two inches. After setting the upper and lower limit switches (directions did not apply) it went up to the landing and stopped just like it was supposed to but would not go down. After a half hour of testing out what was going on by manually circumventing the limit switches at the solenoid power switch itself, it became obvious that the down limit was rigged with two switches in an ?OR-gate? configuration while several other switches seemed to have no function. I shorted out the offending limit switch and the unit began to operate perfectly. My wife uses it every day. The ugly: The paper work that you must sign before the sale can go through roughly states that if anything malfunctions or doesn?t work or is mis-ordered or mis-shipped it is your problem to get it fixed. There is a NO RETURNS policy regardless of what happens or who is at fault. After they have your money they are done except they will send you free parts as required under the terms of the guarantee. A big black blemish occurred in the area near where the sheet metal skirt was badly dented (probably during transit) but it cleaned up reasonably well after the dent was beaten out. The sublime: I designed an automatic gate that was made of 2x4s, a few metal strips, three small hinges, two pulleys and a nylon rope. It works perfectly! As the platform ascends to the stair landing the gate automatically opens for the riders to get off (and remains open). As the platform descends to the garage floor the gate automatically closes and the stair railing appears to continue unbroken and sturdy across the lift access opening and into the wall on the other side of the opening. Total cost was about $25.00 and 3 hours of time. Sweet! Overall: It is a good lift with a simple low-tech low-maintenance solid construction that should last a lifetime in a garage. There are few bells and whistles and high-tech frills to break or malfunction, but it does everything a lift needs to do and can be had at the best price in the industry. It is not a trivial installation and configuration, but if you have just a little electromechanical savvy or know someone who does ? (like a handy man that does work around your house) ? it is pretty easy to figure it out. I suspect Ameriglide would help you with the limit switches if you called them ? it is easy to do once you see what is going on.
46 of 48 people found this review helpful
Did you find this review helpful? Yes / No

Certified Customer
Hercules 11 600
Jul 13, 2012 2:30 PM
A Little About Myself
Retired
Pros
We should not have waited. My wife was confined to the house because of stairs. Know she gets out almost every day.
Cons
Like I said we waited to long.
Service & Delivery
Unit was well wrapped & crated.
The unit was easy to install. Works GREAT. When you order one make sure you ask for KATIE, she is the best. Don't forget her name KATIE.
8 of 13 people found this review helpful
Did you find this review helpful? Yes / No

Certified Customer
2nd lift install and going strong!
Jul 5, 2011 8:56 AM
A Little About Myself
Contractor specializing in disabled access
Pros
Prompt replies to questions. Plenty of options to make installation fit the way the consumer wishes. Our salesman, has been excellent to deal with and we look forward to continuing our business together.
Cons
As with anything, it costs money and it takes time to build for the order. Not really a con persay, just had to fill in something.
Service & Delivery
Top notch!
Thanks to the sales team. They're definitely "on the ball" which is what I needed. When a question comes up they're ready to help.
14 of 16 people found this review helpful
Did you find this review helpful? Yes / No

Certified Customer
AmericaGlide's Hercules ll vertical lift
May 22, 2011 5:29 PM
A Little About Myself
Retired a little mechanically inclined.
Pros

I bought the unit already assembled, and it was easy to install. Everything was as the sales Rep. explained. Delivery was prompt. All I needed was a 120v electrical outlet and help moving the unit into place(Myself and 2 other men). Once in place, anchor the unit to concrete, with the 4 anchors provided. If I find out anyone needing a vertical lift, I would recommend AmeriGlide.

Cons
None.
Service & Delivery
Was prompt.
Very Pleased.
13 of 17 people found this review helpful
Did you find this review helpful? Yes / No

Certified Customer
Good Product
Feb 26, 2011 5:10 PM
A Little About Myself
70+ handyman/artist
Pros
Ease of installation, good design
Cons
The cab is too flimsy.
Service & Delivery
Very Good
Good product at the low end of the market. Worth the cost.
15 of 17 people found this review helpful
Did you find this review helpful? Yes / No

Certified Customer
Hercules II
Feb 15, 2011 4:09 PM
A Little About Myself
Builder
Pros
Works well
Cons

If the vertical lift is only 11", expect to take an extra 1-2 hours figuring out hour to make the thing stop. The wires controlling the position of the stop are too short. The help dept are not any help.

Service & Delivery
Good delivery.
Expect extra assembly time, due to poor design. It works well after assembly.
10 of 12 people found this review helpful
Did you find this review helpful? Yes / No

Certified Customer
Life Saver!
Feb 7, 2011 11:03 PM
A Little About Myself
Dad to a special needs daughter.
Pros
Easy to install. Quiet. Easy to use!
Cons
None that we know of right now!
Service & Delivery
The driver from R&L Carriers was fantastic! He was late getting to the house due to snow, but was able to put the crate right in our garage.
Good looking lift that is really easy for our entire family to use. Much safer to move our daughter in and out of our house. Thank you!
10 of 12 people found this review helpful
Did you find this review helpful? Yes / No

Certified Customer
Hecules II residential vertical lift is a life saver
Jan 17, 2011 3:20 PM
A Little About Myself
I am mechanically inclined and handy.
Pros
Great lift capacity easy to use.
Cons
Directions were a little difficult to follow most of the pictures were blury
Service & Delivery
Delivery was great, it arrived before it was expected to, and the delivery company was very cooperative.
Great buy for the money very sturdy unit.
12 of 17 people found this review helpful
Did you find this review helpful? Yes / No

Certified Customer
AmeriGlide's Hercules Jr. Residential Vertical Lift
Aug 29, 2010 8:23 AM
A Little About Myself
76 year-Old Male
Pros
Exactly as I expected some minor glitches anti-skid material torn on arival
Cons
Very well constructed.
10 of 13 people found this review helpful
Did you find this review helpful? Yes / No
