Overview

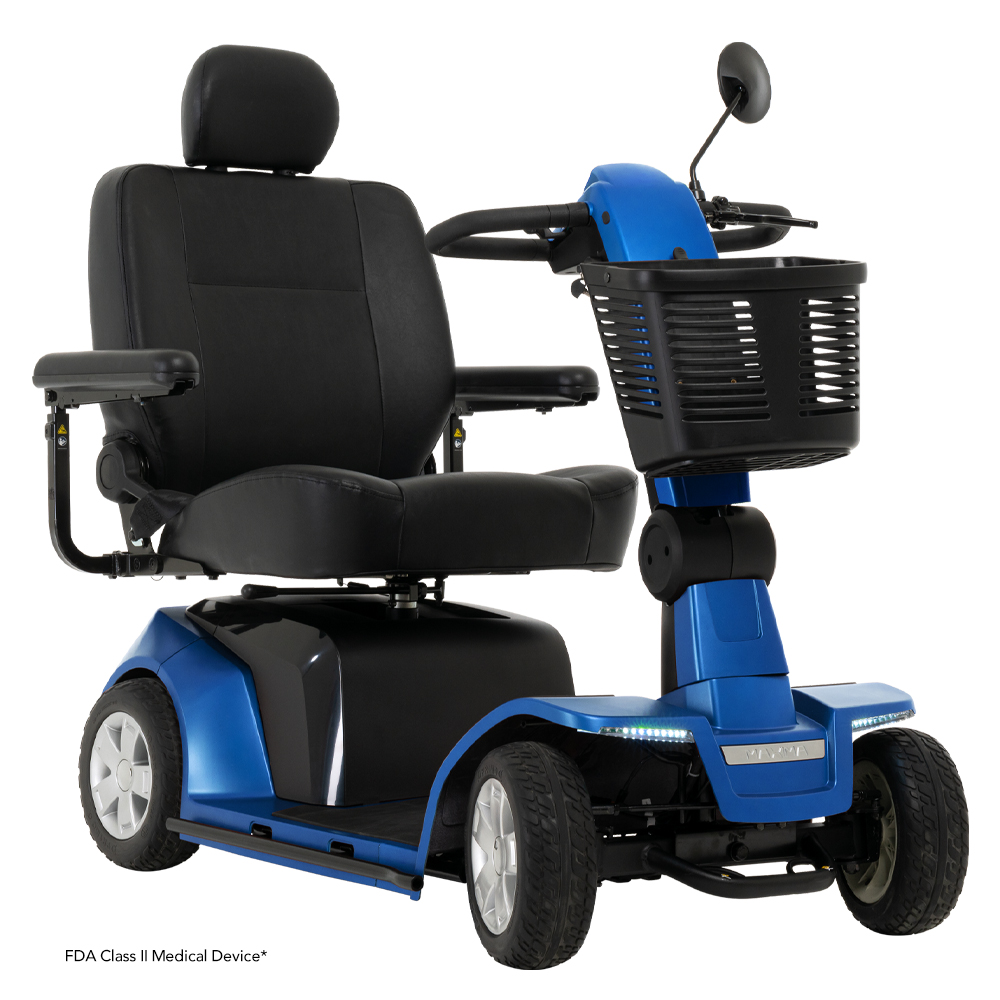

Whether you choose the 3 wheel or 4 wheel version of the Maxima you will be getting true heavy-duty scooter performance. A 500 pound weight capacity is just the start for the Maxima. An ultra heavy-duty drive train has been added to make sure you can take advantage of your Maxima far into the future. The 26 inch wide platform is very stable as well. 3 wheel models come with front and rear anti-tip wheels and 4 wheel models are equipped with rear anti-tip wheels to further increase safety.

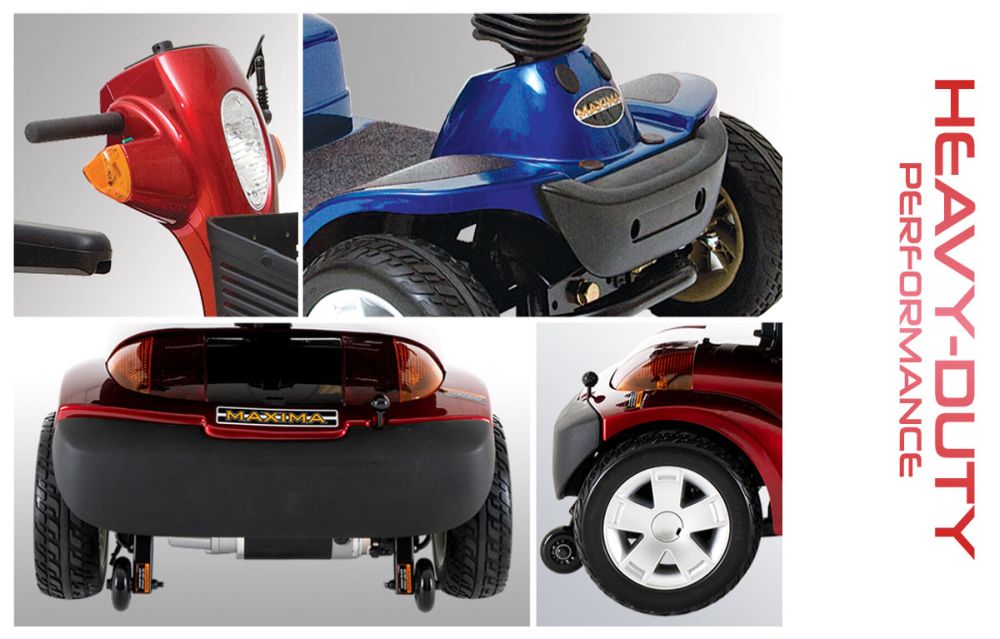

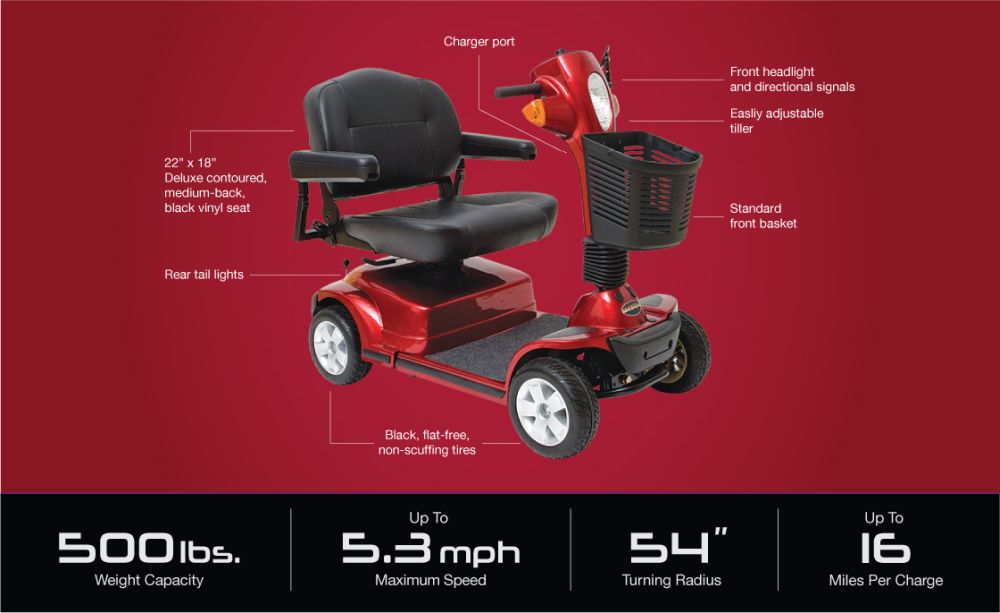

The Maxima offers you other features as well, such as: a durable rear bumper, flat-free tires, full light package, an adjustable tiller, a front basket, and plush seating. When you need a high performance heavy-duty scooter look no further than the Maxima.
Documentation
Download our brochures and guides in PDF.
Videos
Product Specifications
| Weight Capacity | 500 lb | | |
| Overall Length | 46.875" | | |
| Overall Width | 25.5" | | |
| Seat Depth | 18.5" | | |
| Seat Width | 22" | | |
| Per-Charge Range, Maximum | 19.5 mi | | |
| Maximum Speed | 5.25 mph | | |
| Turning Radius | 54" | | |
| Weight, without batteries | 196.8 lb | | |
| Weight, with batteries | 269.8 lb | | |
| Heaviest Piece Weight | 72.5 lb | | |
| Disassembly | 7 Pieces | | |
| Front Wheel Diameter | 10" | | |
| Rear Wheel Diameter | 10" | | |
| Ground Clearance | 3.25" | | |
| Tire Type | Solid | | |
| Drivetrain Type | Sealed Transaxle | | |
| Motor Type | 24 Volt DC | | |
| Brake Type | Electro-mechanical, Regenerative | | |
| Controller Type | Ultra Heavy Duty 110 Amp | | |
| Battery Type | (2) 22NF or (2) U-1 | | |
| Battery Weight | 76 lb | | |
| Battery Charger | Off-board, 5 Amp | | |
| Goes In Reverse | Yes | | |
| Freewheel Mode | Yes | | |

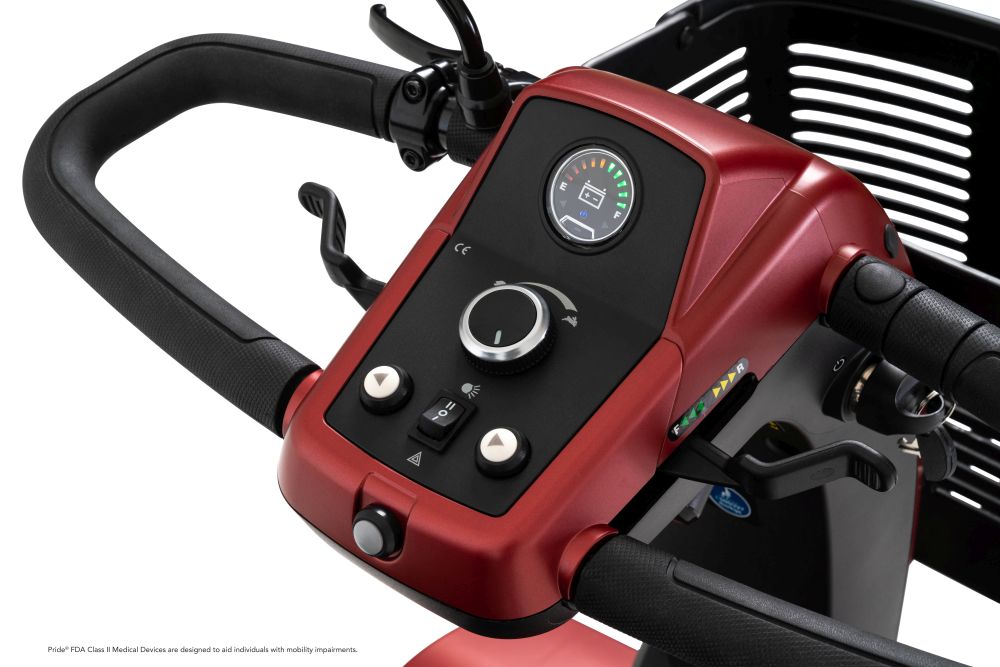

| Tiller Style | Handle Bar | | |
