Overview

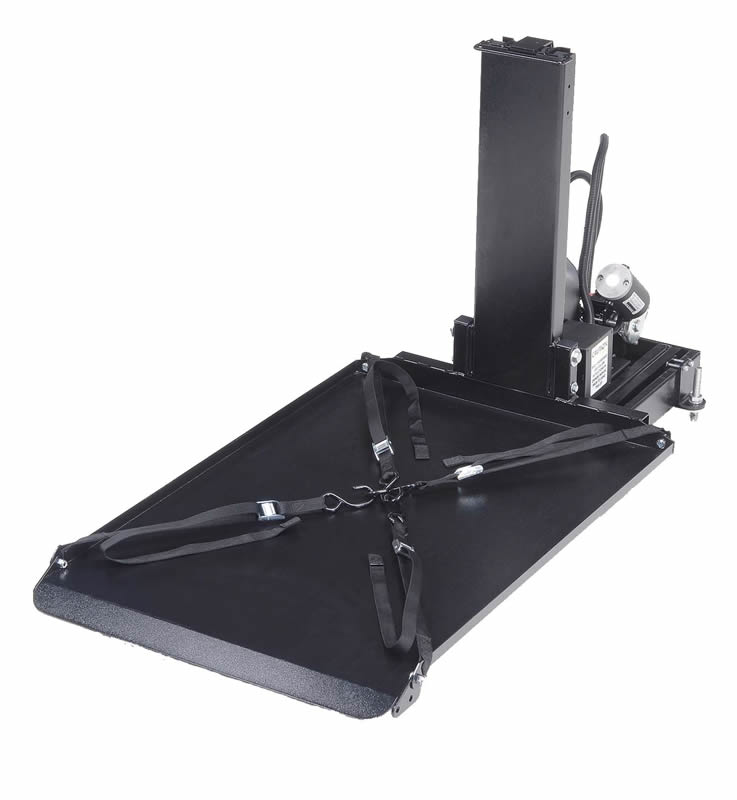

Our Side Loading Hybrid Platform Lift is a very unique scooter / electric wheelchair lift. It installs on second row seating hardware (without drilling). This means that the power wheelchair or scooter can be delivered near the passenger or driver's door making it more convenient to move from mobility device to vehicle and then back.

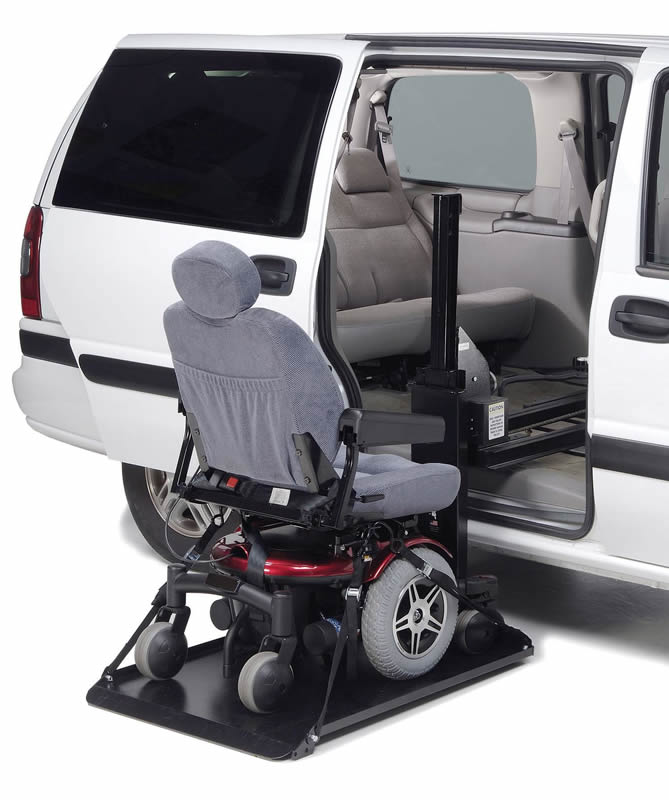

The Side Loading Hybrid Platform Lift is an inside lift, but operates with the convenience that an outside lift's platform offers. When in operation, a platform extends out on rails from inside your vehicle until it clears the side of your vehicle. From there, the platform lowers to the ground. Simply drive your power chair or scooter onto the platform, attach the straps, and press a button. The power wheelchair or scooter automatically lifts and is stored securely, inside your vehicle. Your scooter or electric wheelchair is lifted and lowered using the remote hand control and there are no modifications required.
NOTE: Additional options may be required for your specific use.
Documentation
Download our brochures and guides in PDF.
Videos
Customer Reviews
2 reviews | ||
0 | ||
0 | ||
1 | ||
1 | ||
0 |
Just Me
from Tulsa, OK
Not Real Impressed
would not recommend this to a friend. |
A Little About Myself Disabled, Elderly, and Average Health. |
Pros Safe |
Cons Bulky, Flimsy |
Service & Delivery Delivery was prompt and it was in good condition, but it comes in a HUGE box on a pallet, and luckily I was there when it came and was able to talk the delivery man into loading it directly into my van so I could then bring it to the installer. Otherwise, I never would have been able to get it installed. I would have had to pay a lot extra to have them come to my house to install it. |
AmeriGlide
replies:
Thanks for your input. This lift is designed for vans with sliding doors not for standard hinge doors. This may be the reason you have had so many problems with your installation. |
24 of 27 people found this review helpful |
Shane
from Phoenix, AZ
"I Don't Do Titles"
would recommend this to a friend. |
A Little About Myself Mechanical and Electrical, I Fix Broken Stuff, Athletic, I Modify Design Flaws, Average Health, Son of Disabled |
Pros Fits Van, Customer Service Rocks, Only option, Tech Support Rocks |
Cons No Battery Backup, Remote Cable Too Short, Slow Operation, Poor WIre Loom Design, X and Y Limits Tabs, No Useful Overide, Flimsy |
38 of 38 people found this review helpful |
Product Specifications
Lifting Capacity | 275 lb | ||
Power Source | Vehicle Battery | ||
Boom Arm Rotation | N/A | ||
Minimum Opening | 32" | ||
Boom Arm Extension | N/A | ||
Height Adjustable | No | ||
Adjustable Base Legs | No | ||
Controls | Wired Remote | ||
Depth Required | 58.5" |
